Low Pressure Gas Hook-Up Hoses

This page contains:

bullet

Hose Description

bullet

Prices per Size

bullet

Sizing Chart to determine Hook-up Hose Size

bullet

Observation from the Tech



For engines up to 20hp, the 1/2" hook-up hose can be used "IF" the supply line "to the hose" is of sufficient size for the engine.  In other words, lets say the charts show the engine requires a 1" gas line.  Run 1" all the way up to the 1" shut off valve, then you can drop down to a 1/2" quick disconnect and a 1/2" hookup hose of no longer than 6 feet.



Most customers use our Quality Brass Quick Disconnect Couplers in conjunction with these rubber hook-up hoses.   Get more details about the quick disconnects here:  Quick Disconnect Couplers



Click picture above for larger view of a hose and quick disconnect set (shut-off valve sold separately)

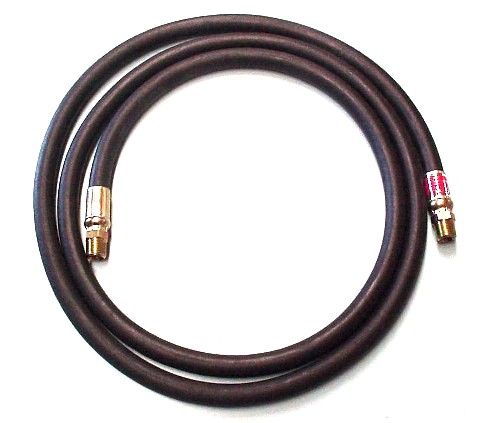

Click picture below for larger view of a hose

The use of these hoses with natural gas must meet the following criteria:

*Maximum working pressure of the application not to exceed 50 psi.  The application must be in an outside (non-enclosed) environment.  Applications that are in an enclosed environment or greater than 50 psi working pressure are not recommended.  Do not use LPG hose for fuel hose in vehicles using CNG (Compressed Natural Gas).



Click for larger view



See the chart below for the correct size needed

bulletSuper Heavy Duty Reinforced Rubber Hoses
bulletWorking Pressure 350 psi. *
bulletMale pipe thread ends
bulletPressure tested to 420 psi (Pressure test certification available upon request).
bulletThe 1/2" hoses in the 3',4',5',6',10',and 12' lengths are included with the basic shipping charges for all kits. Custom length hoses are FOB Atlanta, Georgia.

These hoses are rated by the manufacturer for propane and natural gas use only.



1/2 Inch (.50) Hose with 1/2 Inch MNPT Ends



Hose Length Price Click to Order
3' $39.20 Order
4' $43.21 Order


"Our Best Seller"

6'

$51.20 Order
10' $67.20 Order
12' $75.20 Order
The hoses above will ship with the kit order and are included in the one low shipping cost.
Hoses Over 12' Price Click to Order

*SPECIAL ORDER*

Hoses over 12' will be billed separately and shipped factory direct f.o.b. Atlanta Georgia and are not included in any Shipping Program

$27.20 Base cost includes both male ends, assembly and testing

Then add 4.00 per foot up to 250'

Order



3/4 Inch (.75) Hose with 3/4 Inch MNPT Ends

Theses hoses will be billed separately and shipped factory direct and are not included  in any Shipping Program

Hose Length Price Click to Order
3' $58.56 Order
4' $68.16 Order
6' $77.76 Order

10' $96.96 Order
12' $106.56 Order
Over 12' Price Click to Order

*SPECIAL ORDER*

Hoses over 12' will be billed separately and shipped factory direct f.o.b. Atlanta Georgia and are not included in Shipping Program



$44.16 Base cost includes both male ends, assembly and testing

Then add 4.80 per foot up to 125'



Order



1 Inch (1.00) Hose with 1 Inch MNPT Ends

Theses hoses will be billed separately and shipped factory direct and are not included  in any Shipping Program

Hose Length Price Click to Order
Order by the foot only and will be billed separately.  Shipped factory direct f.o.b. Atlanta Georgia and are not included in Shipping Program $59.90 + 5.60 per foot Order





 Chart for Low Pressure Hook-up Hoses based on Hose Size and Distance

Generator

Wattage

Engine

HP

10 20 30 40 50 60 70 80 90 100 125
1850 3.5 .50 .50 .50 .50 .50 .50 .50 .50 .50 .50 .50
2500 5 .50 .50 .50 .50 .50 .50 .50 .75 .75 .75 .75
4000 8 .50 .50 .50 .75 .75 .75 .75 .75 .75 .75 1
5000 10 .50 .75 .75 .75 .75 .75 .75 1 1 1 1
7500 15.5 .75 .75 .75 .75 1 1 1 1 1 1 1.25
8000 16 .75 .75 1 1 1 1 1 1 1 1.25 1.25
10,000 20 .75 .75 1 1 1 1 1.25 1.25 1.25 1.25 1.25
12,000 24 .75 1 1 1 1.25 1.25 1.25 1.25 1.25 1.25 1.25

Observation from the Tech:   Sometimes it is not an easy decision where to connect the generator to the gas system.  Try to start by looking at the meter which is always best if possible. If this is not close to the power connection and if using a temporary electrical connection wire, a choice will need to be made as to which connection to favor, the gas or the electric.  The gas is usually the one customers opt to run farther due to overall cost and safety.  We ship a lot of custom hoses from 20', 30', 50', 70' and more.  When ordering customers will usually tell us that they have called a plumbing company or their gas company and the installation cost of rigid pipe to the generator relocation would be like $400.  They can order a rubber hose 70' long for $192 and take it with them if they move.  No digging trenches or drilling holes in walls. For long runs like this brackets can be attached to each corner of the generator and then just wind the hose around or use a hose reel when not in use.
